Trailer Parts Townsville| Bartel Trailers Townsville

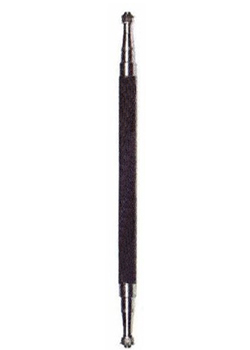

Product name: 39mm Solid Round Axle



Product code: AX1001



Specifications: 39mm Solid Round Axle to suit LM Holden bearings 850kg rating usually for lighter trailers for normal use box trailers boat trailers etc. Lengths range from 59 inch To 80 inch other sizes available on request also available in galvanized.



Availability: Call for availability





______________________________________________________________________________


Trailer Parts Townsville| Bartel Trailers Townsville

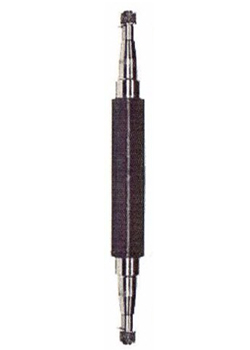

Product name: 45mm Solid Square Axle



Product code: AX1003



Specifications: 45mm Solid Square Axle to suit Ford bearings rated to 1400kg usually for for braked trailers or for off road trailers.Lengths range from 59 inch To 96 inch other sizes available on request also available in galvanized.



Availability: Call For Availability





______________________________________________________________________________






Product name: 45mm and 50mm Solid Parallel Square Axle

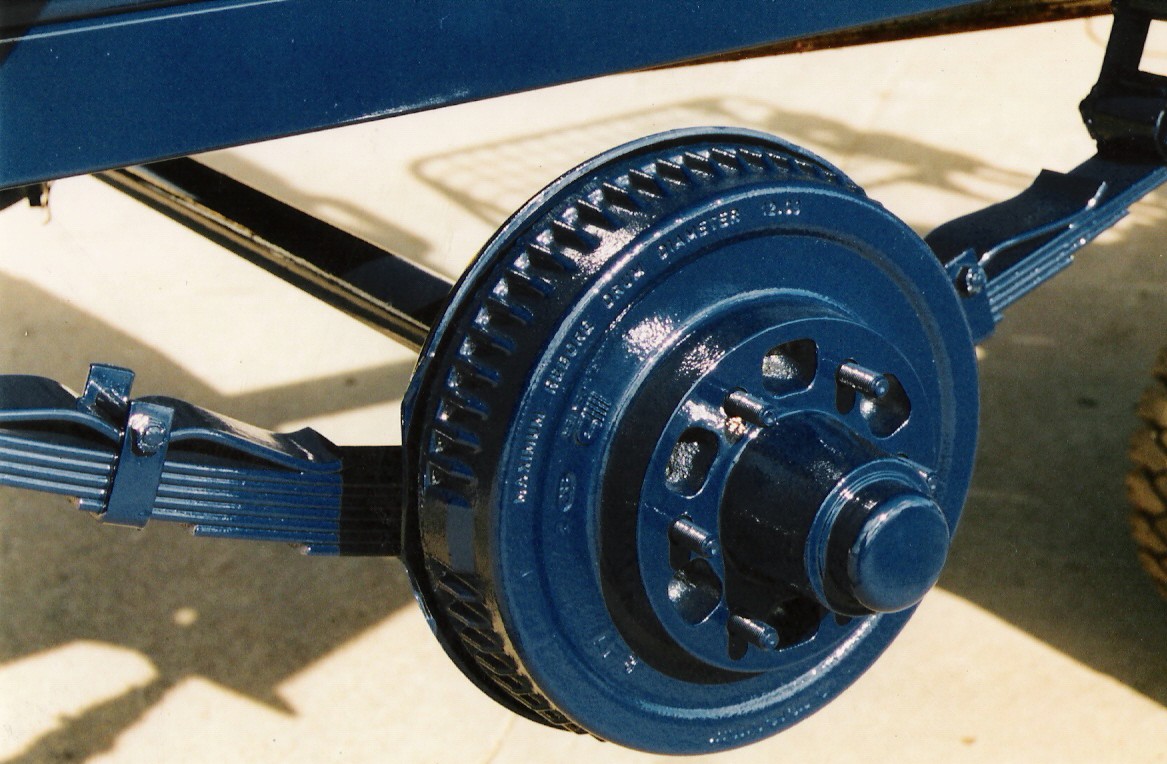

Specifications: 45mm and 50mm Solid Square Axle to suit L68149/10 bearings inner and outer bearings are the same rated to 1900kg usually for braked trailers or for off road trailers offering a more reliable set up Off road without the expense and extra weight of going to 2 tonne axle with 12"electric brakes  .For the length it is easier to use a hub face to hub face measurement some common lenghts held in stock other sizes available on request can be supplied with lazy hubs or with 10" electric drum in 5 stud ford, 6 stud 4WD and 5 stud cruiser or with 12" disc brake in hydraulic or mechanical in 6 stud 4WD and 5 stud cruiser.



Availability: Call For Availability





______________________________________________________________________________


Product name: 55mm Solid Round Axle 2 tonne



Specifications: 55mm Solid Round Axle to suit 25580/20 and 15123/245 bearings inner and outer bearings we refer to them as Dexter axles 2 tonne axles rated to 2250kg usually for braked trailers or for off road trailers offering a more reliable almost bullet proof set up Off road 2 tonne axle with 12"electric brakes  .For the length it is easier to use a hub face to hub face measurement axle would be made to order and come assembled can be supplied with lazy hubs or with 12" electric drum in 6 stud 4WD and 5 stud cruiser or with 12" disc brake in hydraulic or mechanical in 6 stud 4WD and 5 stud cruiser.

Also available in 3 tonne 63mm round with 30210 and LM29749/10 bearings heavier options would require air brakes etc.



Availability: Call For Availability





______________________________________________________________________________
